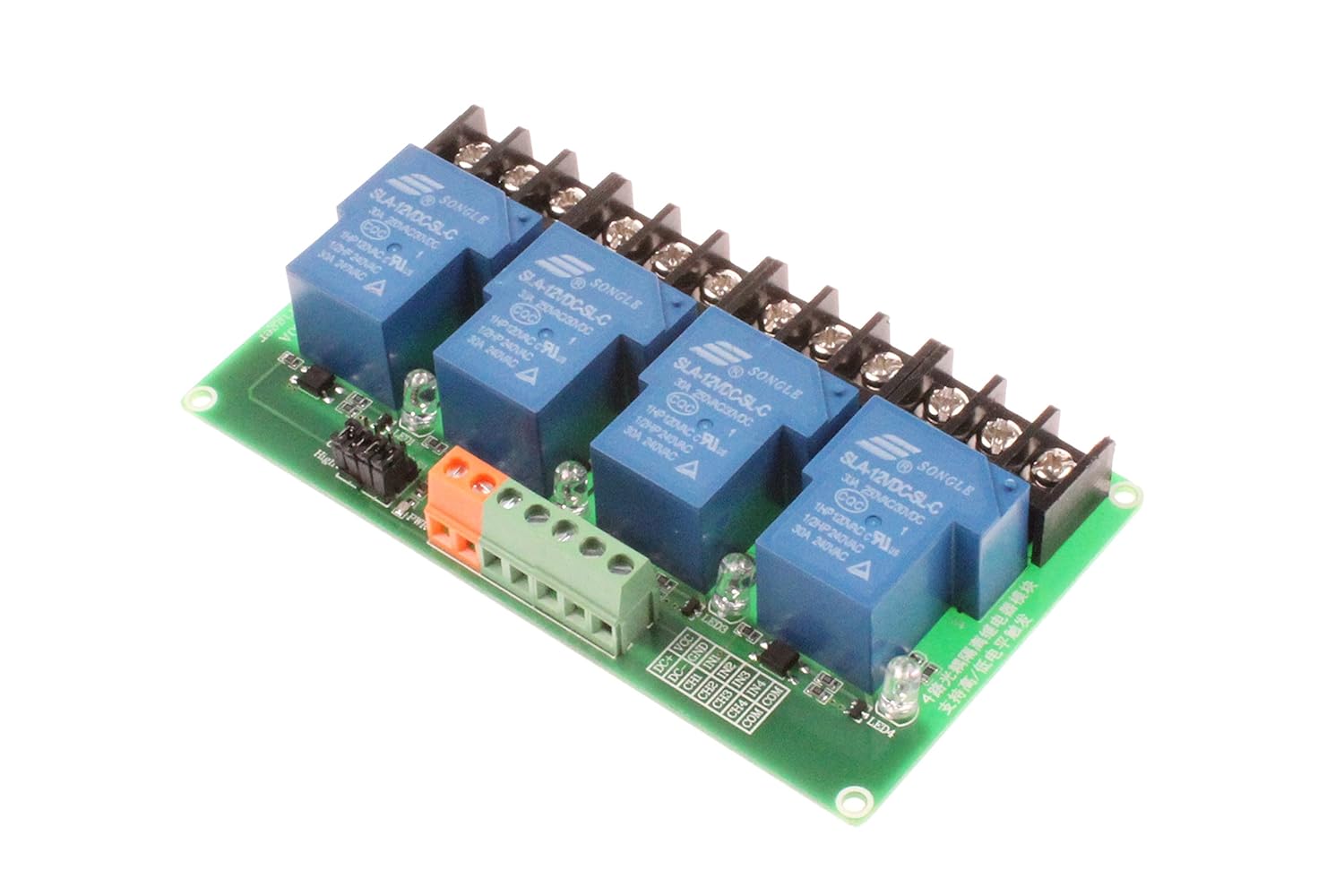

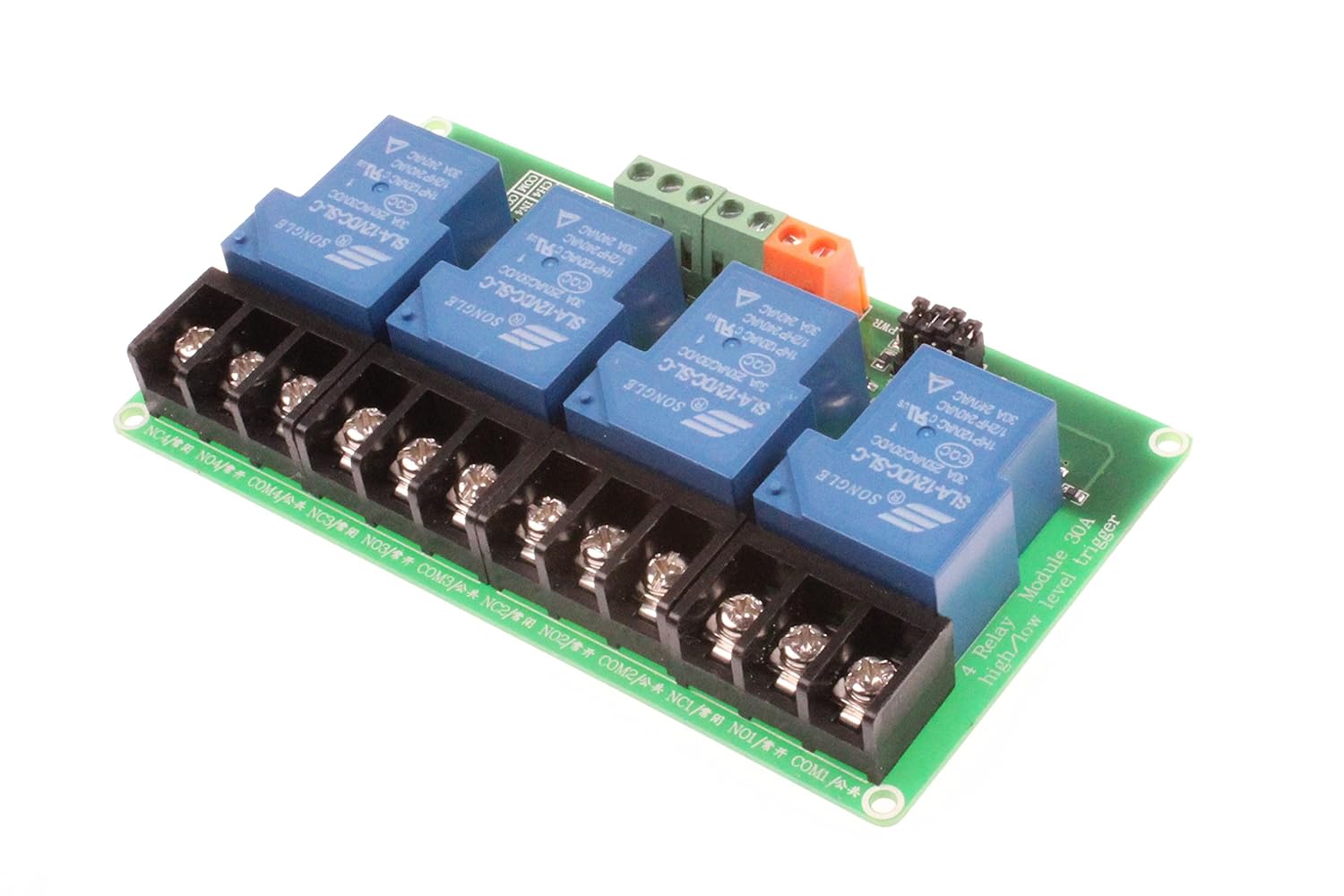

30A 4 Channel Relay Module High Low Level Trigger with Optocoupler Isolation Load DC 30V AC 250V 30A for PLC Automation Equipment Control, Industrial Control (4-Channel 12V)

30A 4 Channel Relay Module High Low Level Trigger with Optocoupler Isolation Load DC 30V AC 250V 30A for PLC Automation Equipment Control, Industrial Control (4-Channel 12V)

12.34$

About This Product :

Product Applications: PLC automation equipment control, industrial system control, Internet of Things control, electronic enthusiasts to develop experiments, all kinds of circuit modification.
Each channel with optocoupler isolation, anti-interference ability.
Using high-power relay, control the load up to 30A.
Each channel with relay on / off LED indicator.
Module load voltage: DC30V / AC 250V 30A ; Module Power Supply : DC 12VModule supply voltage must be DC, and the voltage to be consistent with the relay voltage..

Details :

Contact Type: Normally Open
Current Rating: 30 Amps
Mounting Type: PCB Mount or Panel Mount
Operation Mode: Off

1412 in stock

Description
Reviews (0)

Product Description :

Electrical parameters: Supply voltage: DC12V; Quiescent current: 5mA; Maximum operating current: 80mA; Trigger mode: High / Low Level Trigger; Load voltage: DC 30V / AC 250V; Load current: 30A; Module life: 10 million times; Switch the maximum frequency: ≤ 5KHz; Product weight: 185g; Size:129x72x22mm (LxWxH); Mounting hole size:126.
5×69.
5(LxW); Trigger voltage range: High-level trigger: DC 6-12V relay on; DC 0-5.
5V relay off; —- Low-level trigger: DC 0-5V relay on; DC 6-12V relay off; Pacakage Included: 1×4-Channel Relay Module

Product Details :

Detail	Value
Product Dimensions : ‎	‎5.08 x 2.83 x 0.87 inches; 6.1 ounces
Date First Available : ‎	‎March 20, 2018
Country of Origin : ‎	‎China
