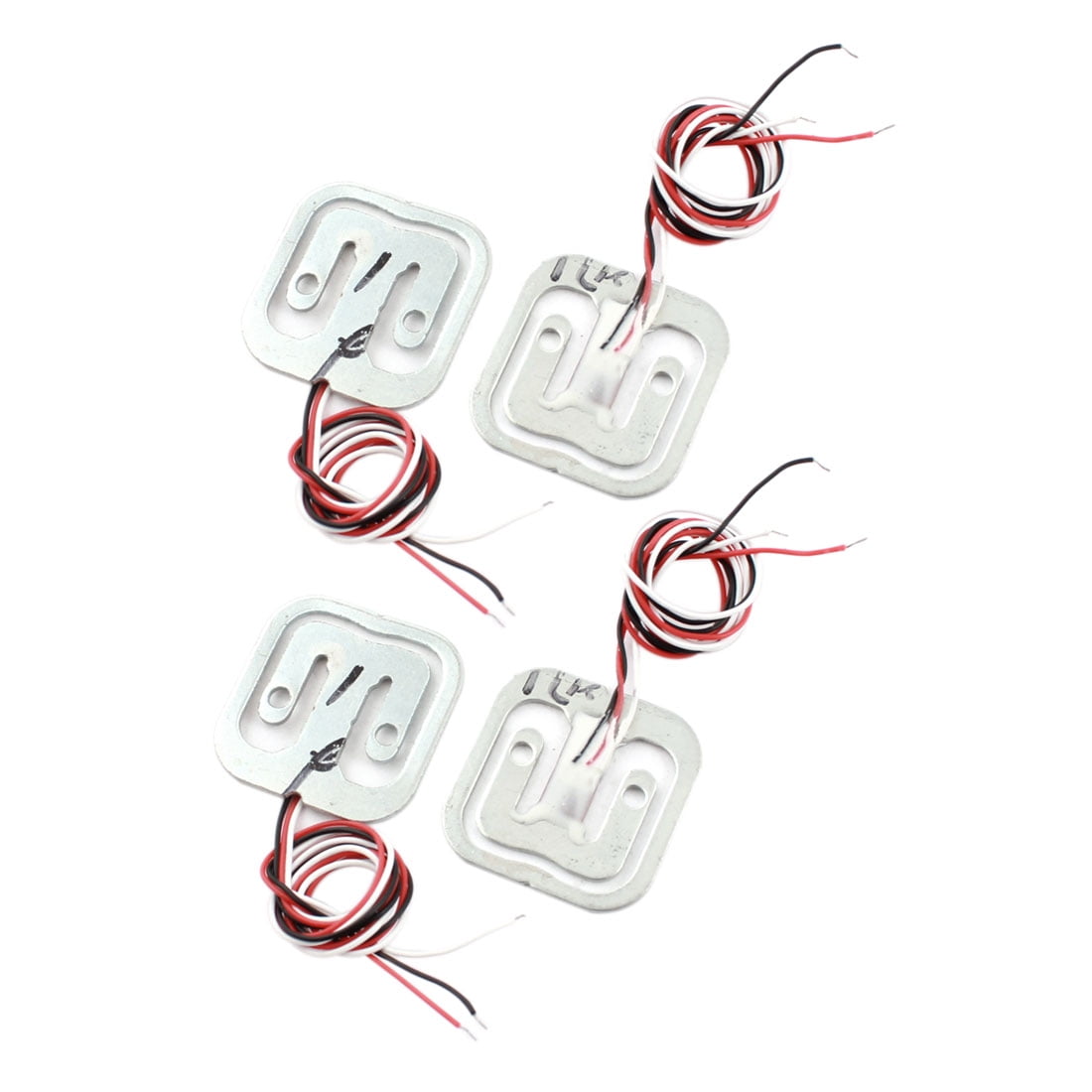

4Pcs 4x5Kg 3-Wire Half Bridge Scale Electronic Weighing Resistance Train Sensor

9.67$

1328 in stock

Used widely in hopper scales, platform scales, platform balance, belt scales and other electronic weighing devices
This is a half-bridge load sensor, which is widely used in weight scales. When the half-bridge is being stretched, it sends signal via the red signal wire. You can use multiple load sensors simultaneously to increase the capacity range. Two sensors full-bridge measurements: 5kgx2=10kg Four sensor full-bridge measurements: 5kgx4=20kg Parallel use to add additional capacity.
Notice: The Pressure head is not included.

Overall Precision : 1.0+/- 0.1;Working Temperature : -20C to 65C;Compensated Temperature Range : -10C to +50C
Overload : 120%F.S.;Recommend Excitation Voltage : DC 5V;Max Excitation Voltage : DC 8V
Total Size : 26 x 26 x 1.5mm /1" x 1" x 0.03"(L*W*T);Wire Length : 21cm/8";Material : Aluminium Alloy
Color : Silver Tone;Weight : 18g;Package Content : 1 x Half Bridge Weigh SensorSet
