A-Team Performance 50,000 Volt Remote E-Coil Ignition Coil Black

A-Team Performance 50,000 Volt Remote E-Coil Ignition Coil Black

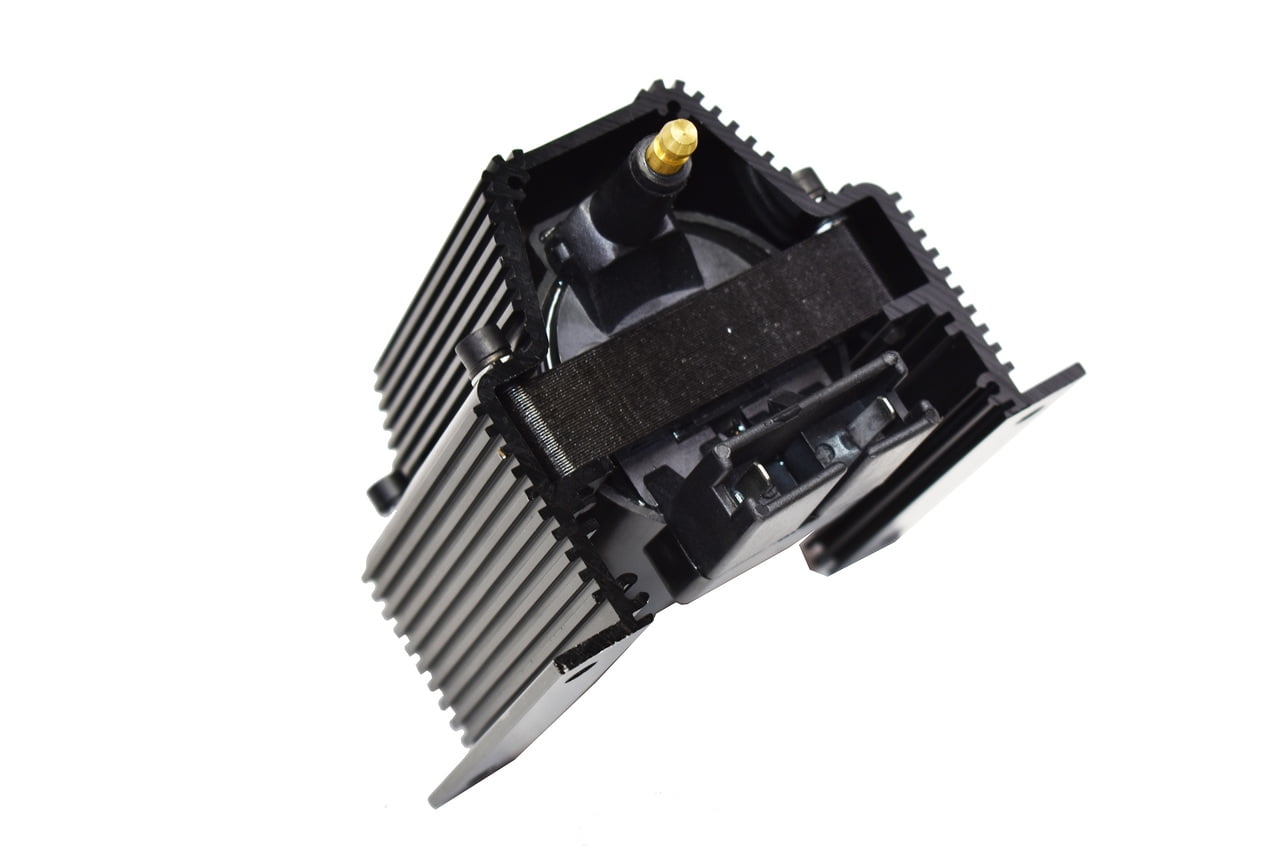

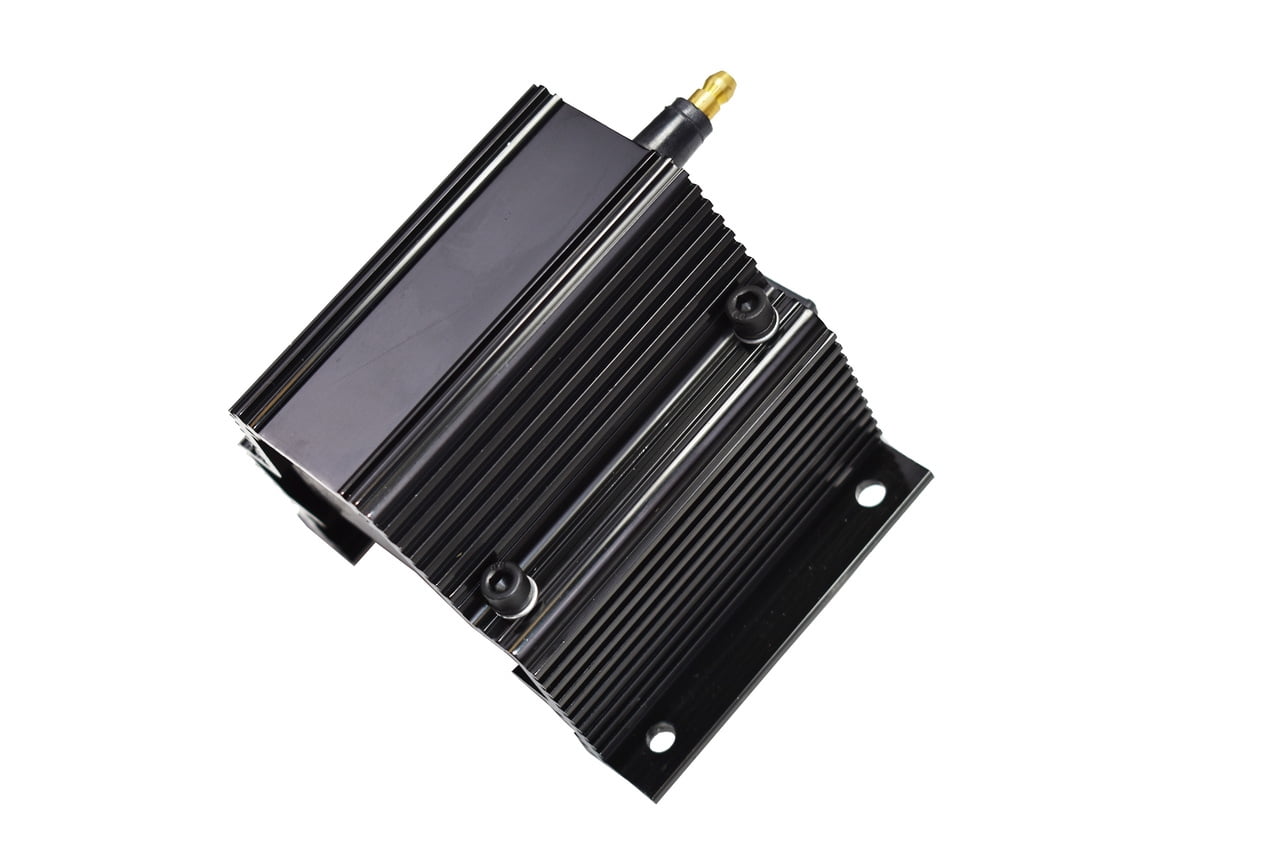

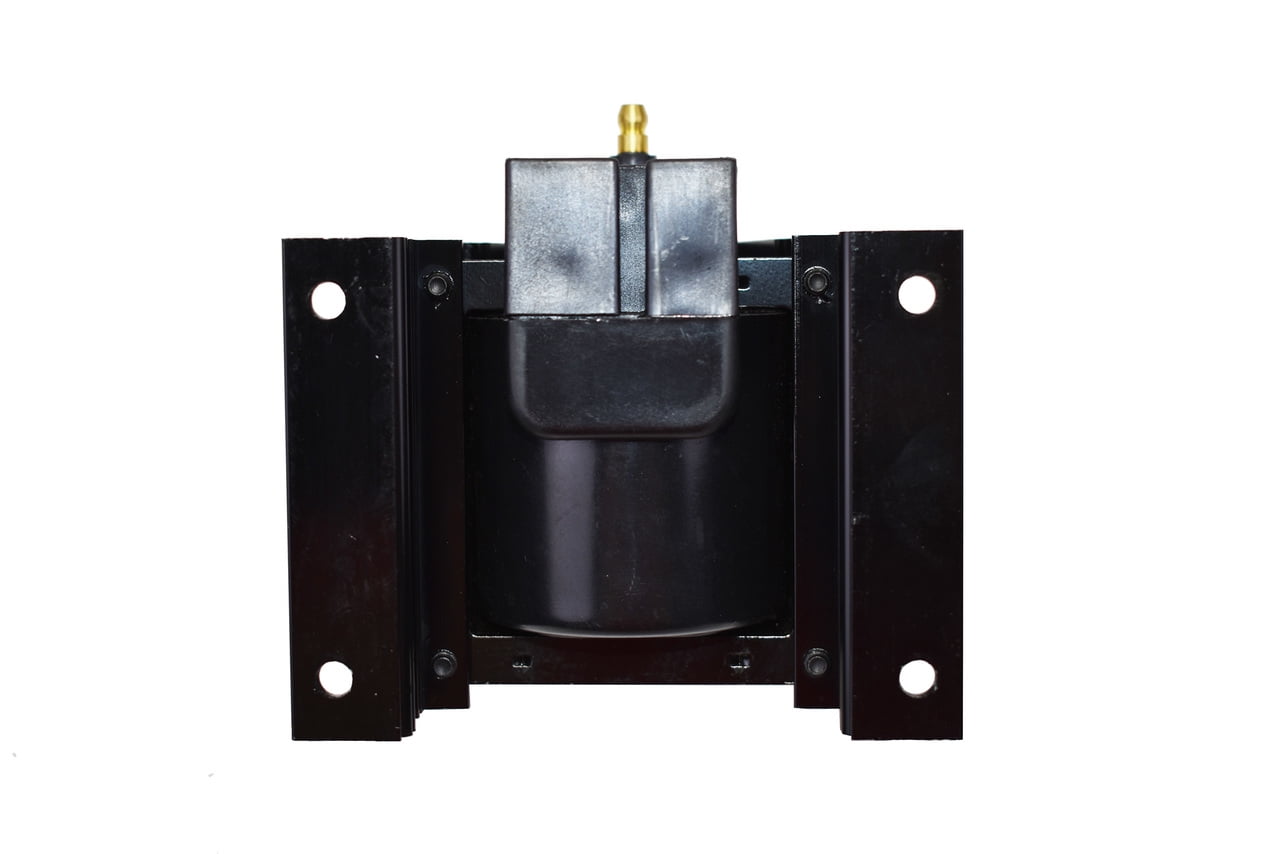

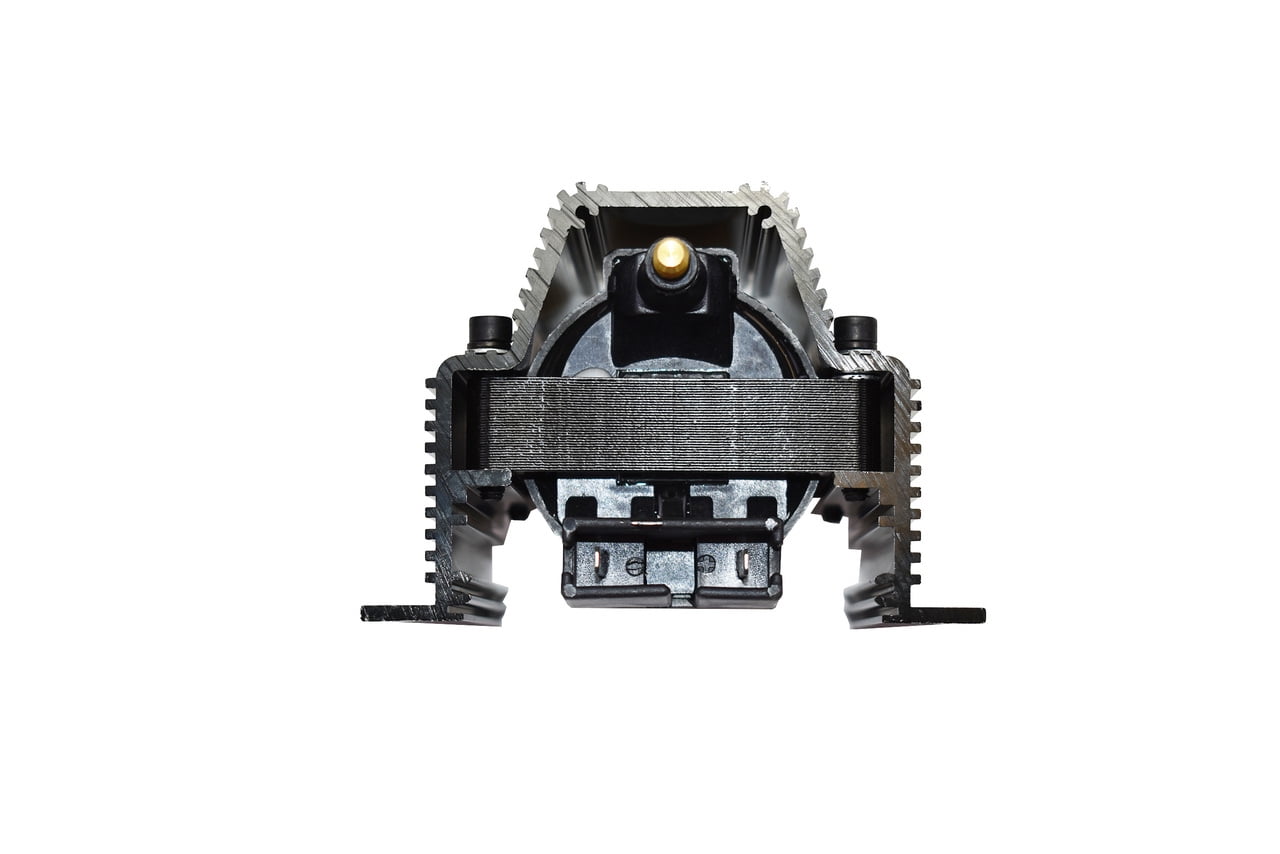

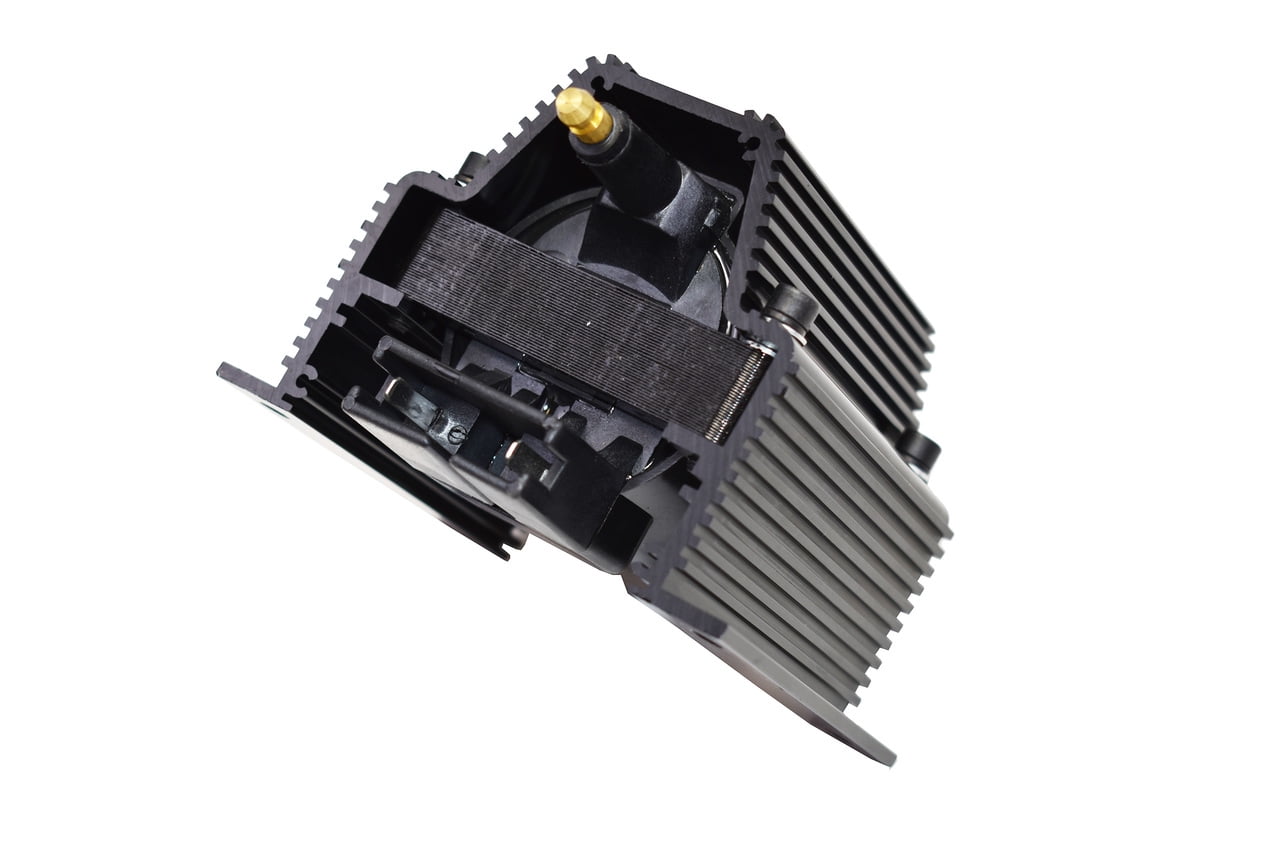

A-Team’s E-Core Ignition Coil has a new design that better dissipates heat. Its square shape allows for easy mounting on a firewall or fender, and it comes with a plug wire connector for a clean installation. The E-Core magnet puts out 50,000 volts, or about 70% more spark energy over most stock applications, giving you a much hotter and larger spark to burn fuel more efficiently and provide smooth acceleration throughout the entire RPM band.

Secured in a billet aluminum housing, our ignition coil features a top-quality epoxy internal construction, a brass wire attachment, and premium e-core magnet to ensure superior output and lasting performance.

SPECIFICATIONS:
COIL STYLE – E-core
INTERNAL CONSTRUCTION – Epoxy
PRIMARY RESISTANCE – 0.35 ohms
SECONDARY RESISTANCE – 8,000 ohms
MAXIMUM VOLTAGE – 50,000 volts
SPARK DURATION – 200 microseconds
PEAK CURRENT – 260 milliamperes
TURNS RATIO – 100:1
INDUCTANCE – 7.0 millihenrys
COIL SHAPE – Square
HOUSING MATERIAL – Billet Aluminum
COIL WIRE ATTACHMENT – Male

Free shipping in the continental USA!
