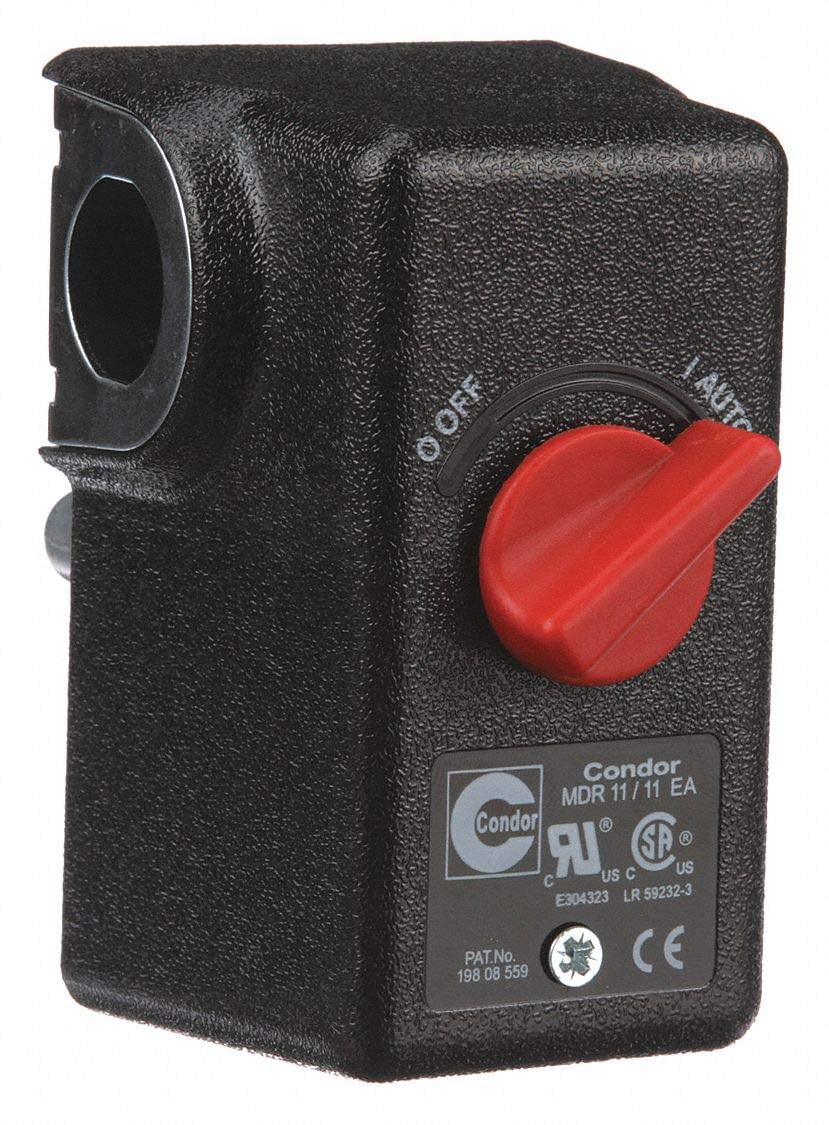

Condor MDR11/11 Pressure Switch Control Valve 80-100 PSI 1 Port 1/4′ FNPT 11EA2E

Condor MDR11/11 Single Port Pressure Switch 80-100 PSI w/ Unloader PortBrand new 80-100 PSI air compressor pressure switch or also known as a pressure control valve. This switch has one port on the bottom for air inlet hook up, which is 1/4" female NPT and also has a 1/4" compression unloader valve that comes out the bottom of the switch with a 90-degree elbow. This switch works with 110-240 volt motors and can handle 15 full load amps at 240 volts. This switch also comes in a NEMA 1 enclosure to protect the components from drops and other accidents. For technical specifications please see below. Specifications:• Factory Set Pressure Range: 80-100 PSI• Pressure Switch Differential: 45 PSI• Minimum Cut It Pressure: 20 PSI• Maximum Cut Out Pressure: 160 PSI• Rated Switching Capacity: 2HP at 120 Volts, 3HP at 240 Volts• Max Switching Capacity: 15 Full Load Amps at 240 Volts• Switch Works with 120 Volts and 208-240 Volts• 1/4" Female NPT Connection• 1/4" Compression Unloader Valve• Single Port• 2-Pole Single Phase (N.C.)• NEMA 1 Enclosure• Steel Flange• Adjustable Range and DifferentialThis listing is for one (1) Condor 11EA2E pressure switch.

• Factory Set Pressure Range: 80-100 PSI
• Pressure Switch Differential: 45 PSI
• Minimum Cut It Pressure: 20 PSI
• Maximum Cut Out Pressure: 160 PSI
