OC-55 NO Alarm Security Rolling Gate Garage Door Contact Magnetic Reed Switch

Description:
1.Actuation Distance: 40-50mm. Zinc Alloy Housing, Stainless Steel Pipe.
2.The reed switch is an electrical switch operated by an applied magnetic field.
3.Designed for use with alarm systems. Great for use in family and factory window, door. etc.
4.Screw Mounted for easily install.
5.NO means Normally Open:when the magnet separate, the circuit is not conductive( light on );When the magnet together, the circuit is conductive ( light off ).When make order,pls check carefully!

Specification:
Product Name: Magnetic Door Switch
Model: OC-55
Contact Type: NO
Actuation Distance: 40-50mm
Max. Current: 0.5A
Max. Power: 10W
Working Voltage: DC100V
Size(Approx): 105 x 37 x 9.6mm, 106.5 x 15.4 x 15mm (L*W*H)
Hole Dia.: 5.5mm
Cable Length(Each): 50cm / 19.7-inch
Pipe Thread Length: 37mm / 1.46-inch
Material: Zinc Alloy (Housing)

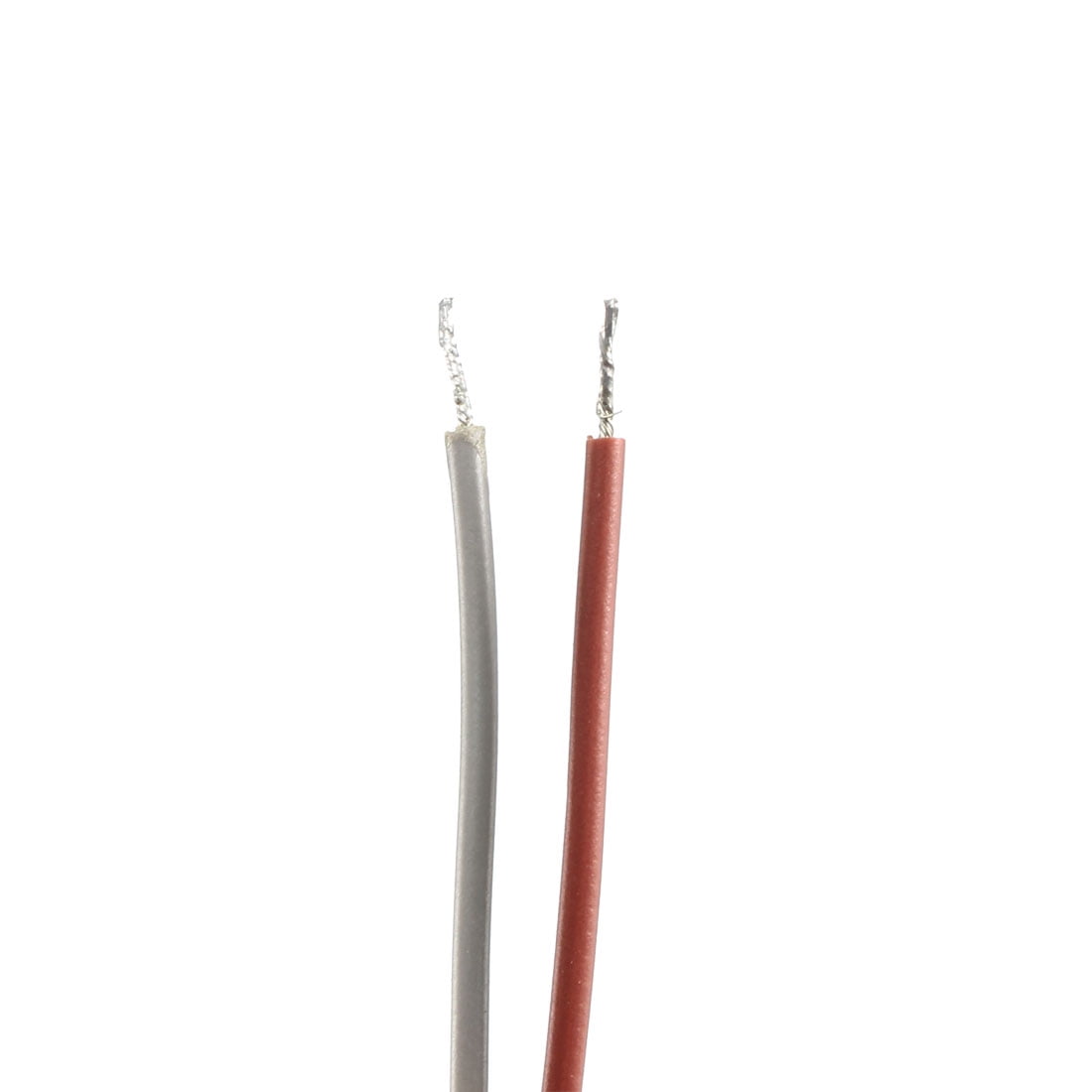

Wire Type: 1007UL#22AWG
Color: Silver Gray
Net Weight: 178g

Package Content:

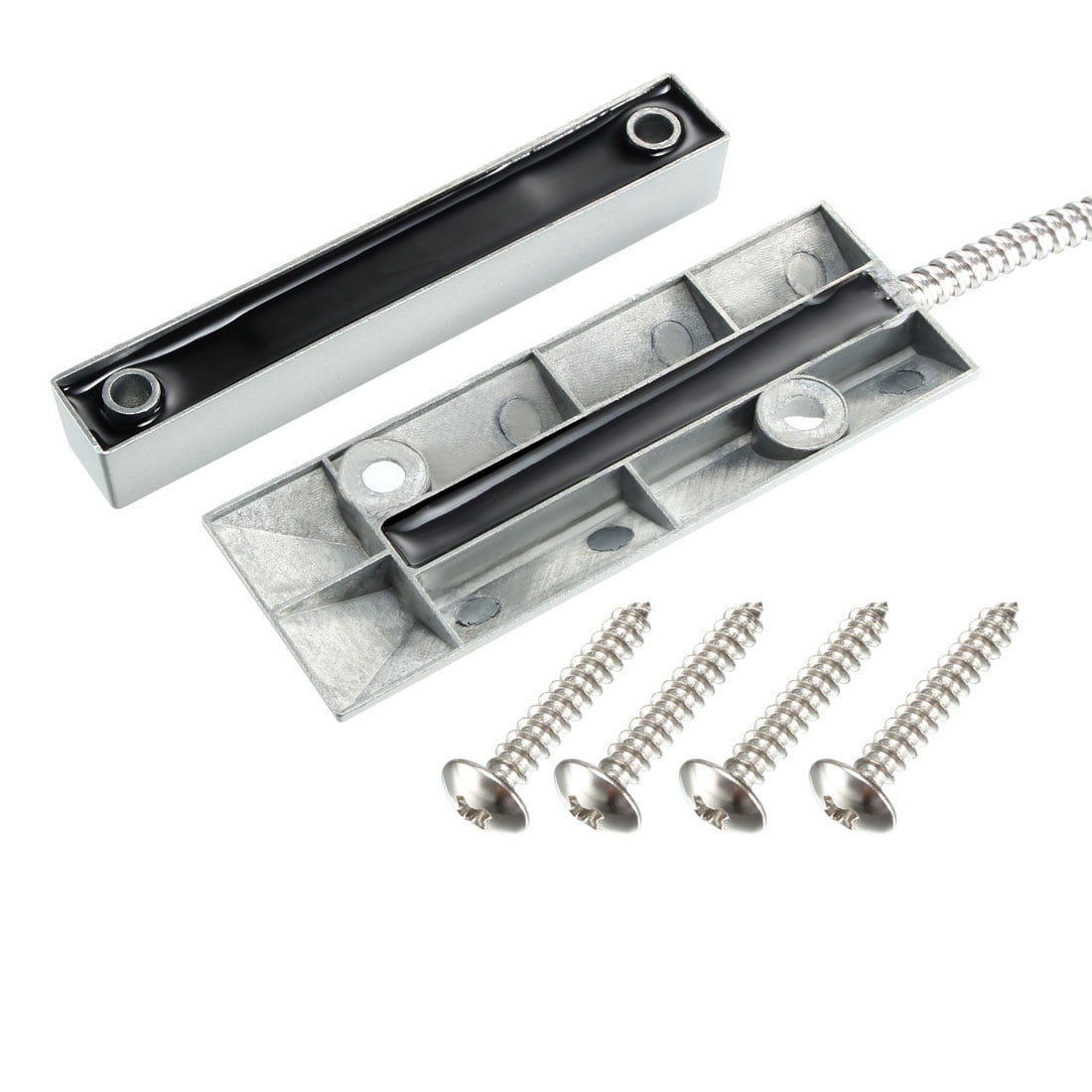

1 x Magnetic Door Switch, 4 x Screws

Note: Door magnetic induction can only provide a switch signal to the device, which can not directly load the power, nor directly connect the lamp!

• 0.5A Maximum Switch Current
• Will make Sense Door Closer at Roughly 40-50mm
• Screw Surface Mount
• Size(Approx): 105 x 37 x 9.6mm, 106.5 x 15.4 x 15mm (L*W*H)
