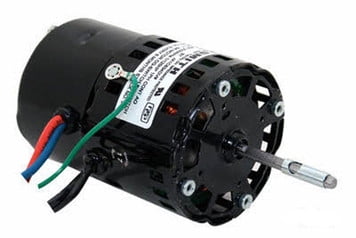

Model 349 Century Coleman Inducer Motor 1/125 hp 3000 RPM CW 3.3′ 115V # 349

Shaft: 1/4" x 2 1/2" Rotation = CWSE; Sleeve Bearings

• 1/125 hp, 3000 RPM, .46 Amps 115V 60 hz.
• 4 mounting holes shaft end
• Shaft: 1/4" x 2 1/2" Rotation = CW
• Supplied with shaft bushing 1/4" x 5/16"
• Sleeve Bearings
• Mounting: Threaded Holes – Bolt Circle – 2.85"
• Motor Length Less Shaft = 4 3/4"
• 1 Year Manufacture Warranty.

Includes centrifugal switch (back end of motor), 20" leads.
Suggested replacement reference for: 7995-316, 7121-5906, 7700-3149, 8670-3149, 8865-3149, AAIEO97,AA1E097, 002114F02AF03408874, 002114FO2AF3409974, 21RT6AF-A4479, 7121-2819, 7121-2842, 7121-2882, H00119242, AA1C155, AA1E097, JA1C067, JA1C634, U349. Same as Fasco D408.
