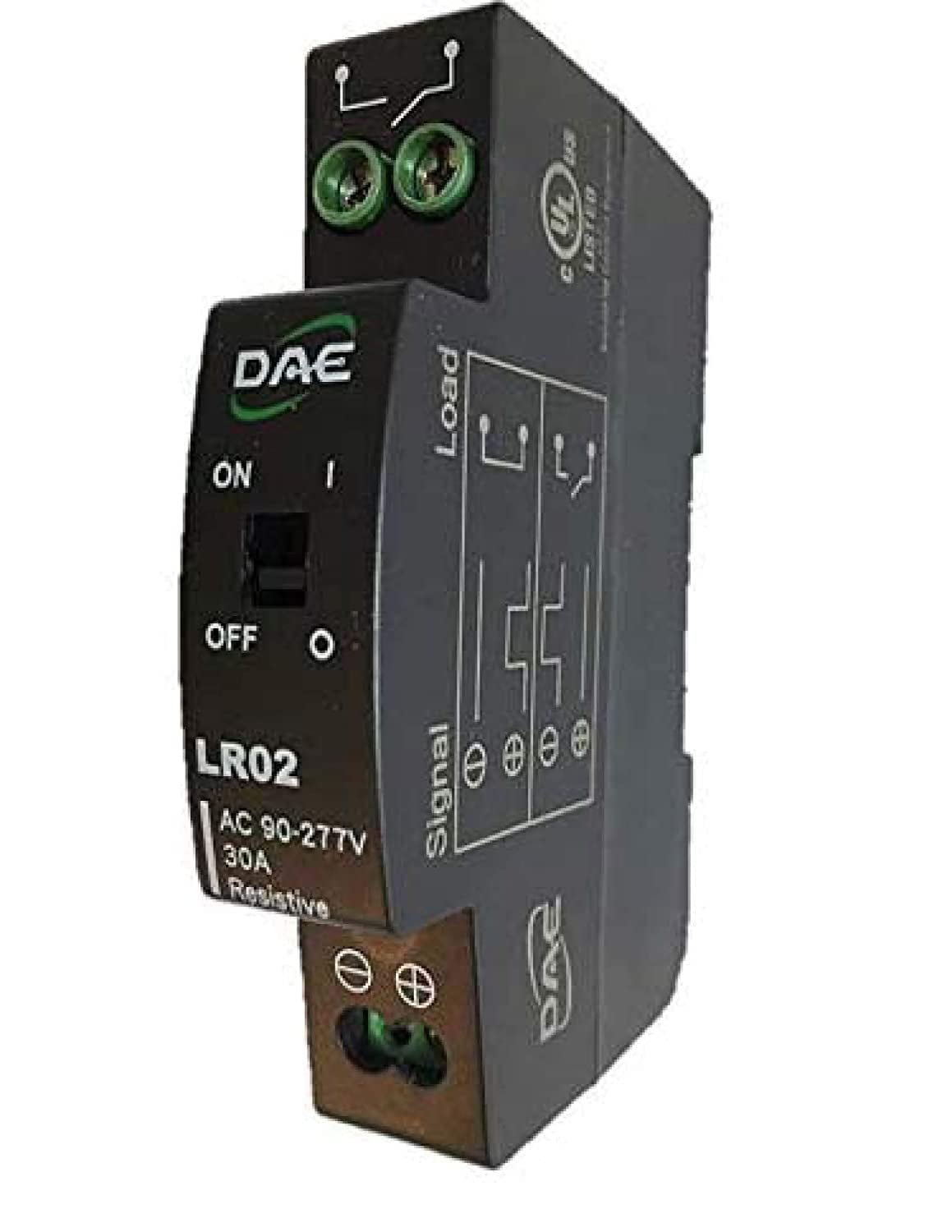

DAE LR02-30A UL listed, Latching Relay, 30A

DAE LR02-30A UL listed Latching Relay, 30A.Ready to use with DAE LT2544 Controller and/or motion sensor for 4 – 30A circuit control, with DAE LT4544 Controller for 4 channels of DC 0-10V control to dimmable LED, CFL, fluorescent and other dimmable lights.Ready to use with DAE LT2544 Controller(2nd picture) and DAE Digital Switch IS45.Ready to use with 2 Momentary sw – NO+NC (3rd picture) for traditional control of one 30A circuit.Ready to use with DAE LT2544 Controller(4th picture) and Momentary sw.Pulse mode signal level: 9 – 12 VDC.Pulse signal hold time: 100 ms (0.1 sec) minimum (equivalent to a push of button)If you are interested in lighting controls box or looking for a large quantity, please contact us.See DAE Controls website for more information.For the buyers outside of USA, in addition to the tax, the carriers may charge brokerage fee.

• DAE LR02 Latching relay will maintain its contact position after the control power has been removed. Therefore, it has very low power consumption and very quiet. Conversely, a non-latching relay maintains its state only while being actuated. Consume more energy and much more noisy.
• DAE LR02 Latching Relay has two coils to control its operation. When the circuit generates a pulse of electricity through the coils, it pushes the switch from one side to the other. The switch stays there until it receives a magnetic pulse in the opposite direction, pushing the switch back to the other terminal.
• Ready to use with 2 Momentary sw – NO+NC (3rd picture) for traditional control of one 30A circuit. When pushing the button of NC (Normally Close) momentary sw, DAE LR02 will be on. When pushing the button of NO (Normally Open) momentary sw, DAE LR02 will be off. Video: www.youtube.com/watch?v=nn212XVw4FY
• Most of our customers will be able to receive their items in 3 business days (Continental US). If you order by 4pm Eastern Time Monday through Friday, we shall ship in the same day.
• Factory Calibration Certificates available. DAE Controls LLC is an Minority Business. Please feel free to get the NMSDC Minority Supplier Certificate from DAE Controls Website.
