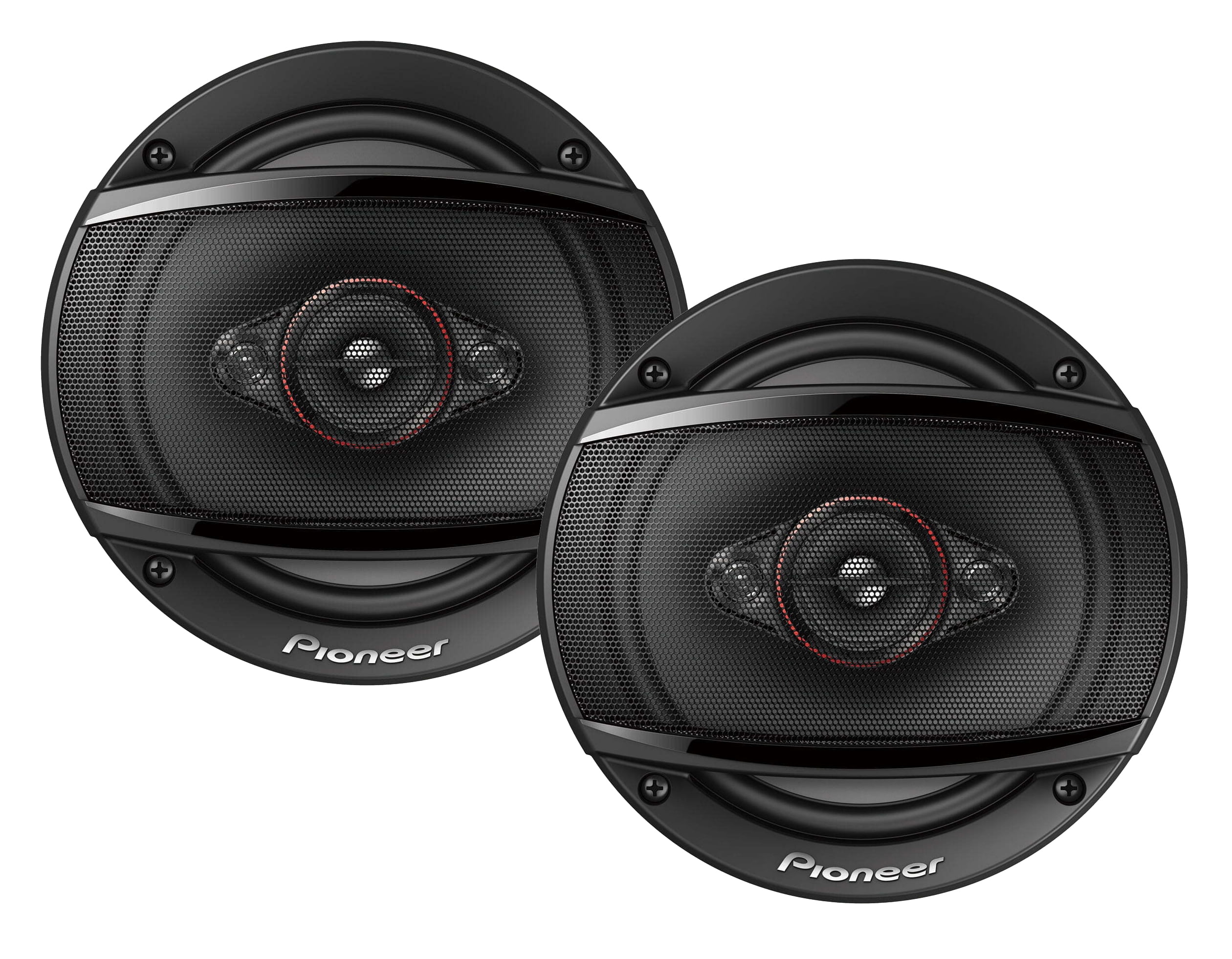

Pioneer TS-600M
6-1/2" – 4-way 320 W Max Power, 11mm Tweeter and 11mm Super Tweeter
and 1-5/8" Cone Midrange – Coaxial Speakers (pair)

The Pioneer TS-600M 4-way, 6-1/2", 320 W Max Power Automotive Loudspeakers feature Pioneer’s OPEN & SMOOTH sound concept that provides a seamless and smooth transition between the Woofer and midrange / tweeter Drivers to deliver uniform off-axis frequency response optimized for automotive applications where one or more speakers are often aimed away from the listeners’ ears. 11mm and 11mm Super polyethylene terephthalate (PET) hard dome tweeters paired with a 1-5/8" cellulose fiber cone midrange produce clear high and mid frequencies while the 6-1/2" carbon and mica reinforced Injection Molded Polypropylene (IMPP) woofer cone delivers deep, rich bass with low distortion, even at high output. Included multi-fit installation adapters optimize fitment in applicable original equipment (OE) speaker locations, making installation simple and easy. Pioneer’s free CarSoundFit app (downloadable on the Apple App Store and Google Play) provides a virtual listening demonstration of these and many other Pioneer Car Speakers, allowing you to compare between your original Speakers and the TS-600M speakers

Easily Upgrade to High Performance
The Pioneer A Series speaker sound design purposely matches the subwoofer and full-range loudspeakers to provide seamless and smooth sound characteristics with dynamic, high impact bass that lets you hear and feel the music. Pioneer’s OPEN & SMOOTH sound concept provides a seamless and smooth transition between the midrange and tweeter drivers and delivers uniform off-axis frequency response optimized for automotive applications where one or more speakers are often aimed away from the listeners’ ears. The A Series lineup expands flexibility and improves acoustic performance. The integrated inline crossover network allows for increased installation flexibility without the need of an outboard module. Included with the Pioneer A Series, are multi-fit installation adapters and tweeter mounts (when applicable).

Open & smooth
Pioneer’s OPEN & SMOOTH sound concept provides a seamless and smooth transition between the midrange and tweeter drivers and delivers uniform off-axis frequency response optimized for automotive applications where one or more speakers are often aimed away from the listeners’ ears.

Easy Installation
Included with the component system are 6-1/2" multi-fit installation adapters that expand flexibility and improve acoustic performance. The included Pioneer multi-fit installation adapters can be easily modified to fit a variety of different applications by simply breaking off or cutting off the easy to remove tabs until the shape and mounting points match the original speaker. Replacing your factory speakers has never been easier.

CarSoundFit – In-Car Simulator
Pioneer’s CarSoundFit app is a car sound simulator for experiencing in-car sound with your own smartphone. Hear the difference between original car speakers and Pioneer audio upgrades and immerse yourself within the sound quality Pioneer can offer for your vehicle. For a virtual listening demonstration of these and many other Pioneer car speakers, download the free Pioneer CarSoundFit app.

TS-600 M Coaxial Speakers (Pair)

• 320W max power / 70W RMS per speaker
• 11mm Tweeter and 11mm Super Tweeter
• 1-5/8" cellulose fiber cone midrange
• 6-1/2" carbon and mica reinforced Injection Molded Polypropylene (IMPP) cone construction
• Multi-fit 6-1/2" adapters included for simple and easy installation
• Protective mesh grille included
• Light weight elastic polymer surround
• Heat resistant voice coil
• Box contains 2 speakers

SYSTEM:

• System Type:  4-Way Coaxial
• Frequency Range:  37 Hz to 24 kHz
• Maximum Peak Power Handling:  320 Watts
• Sound Pressure Level (Sensitivity):  87dB (+- 1.5dB)
• Continuous Power Handling (RMS): 70 Watts
• Nominal Impedance:  4 ohms
• 320W max power / 70W RMS per speaker:  Twin 11mm polyethylene terephthalate (PET) hard dome tweeters

WOOFER

• Diameter:  6-1/2"
• Surround Material:  Elastic Polymer
• Magnet Material:  Ferrite
• Mounting Depth:  1-7/8"
• Cone Material:  Carbon and mica reinforced Injection Molded Polypropylene (IMPP) cone construction
• Basket Material:  Stamped Metal
• Magnet Weight:  7.2 oz.

TWEETER

• Type:  Cone
• Diaphragm Material:  Cellulose fiber
• Magnet Weight:  0.7 oz.
• Diameter:  1-5/8"
• Magnet Material:  Ferrite
