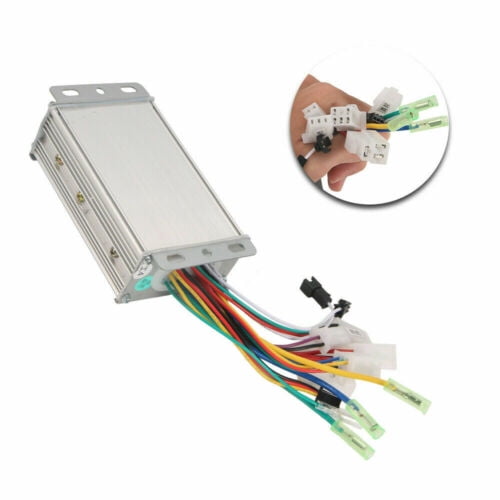

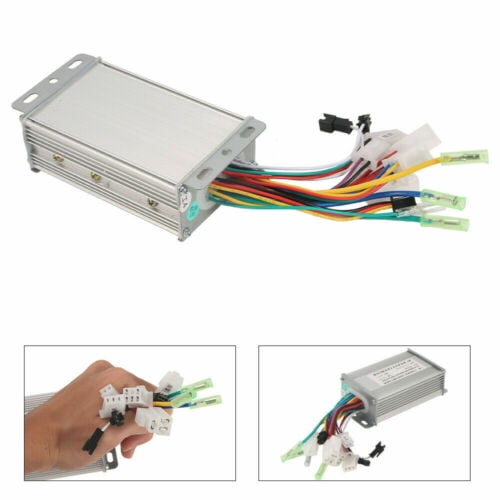

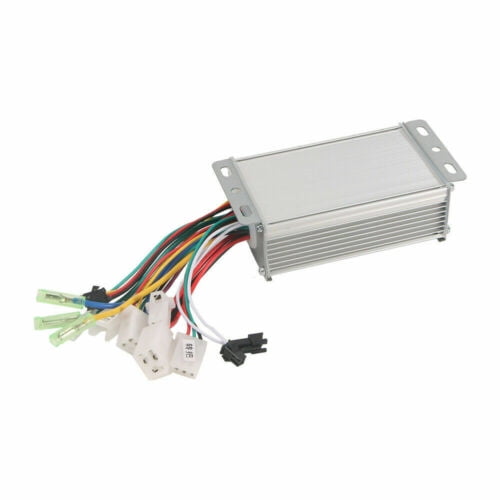

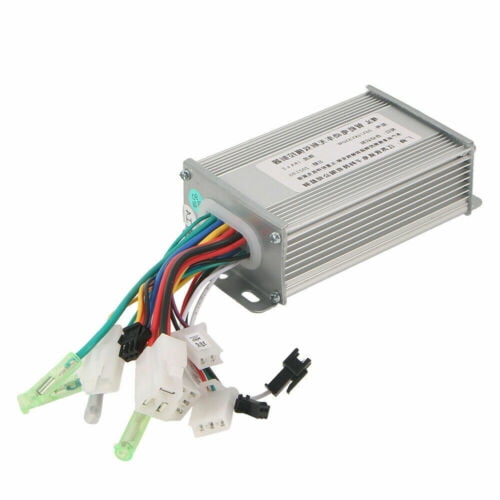

JLLOM G · PEH 36V/48V 350W Electric Bicycle E-Bike Scooter Brushless Dc Motor Speed Controller
$10.72
681 in stock
without anti-theft and 3 speeds option
Description:
—100% Brand New and High Quality
—Voltage: 36V/48V
—Wattage: 350W
—Throttle : 1-4V
—Short voltage protect :31.5±0.5V/42±0.5V
—Color: silver
—Dimension: 105 x 70 x 35mm/4.13 x 2.76 x 1.38"
—Casing material: Aluminium
—Applicable model: Electric Bicycle E-bike Scooter
Instructions：
Turn off the power before wiring.
1. C-onnect the learning switch.
2. C-onnect the motor w-ire(phase A, phase B, phase C). Then c-onnect the hall plug.
3. C-onnect the power and the t-wist g-rip plug.
4. T-wist the g-rip plug. If the motor rotate reversely, cut off the learning switch, then c-onnect the learning switch again. If the motor doesn’t rotate, check the wiring. If the motor forward rotation, go to step 5.
5. Keep the motor working at least 1 minute, cut off the learning switch.
6. T-wist the g-rip plug. If the motor works normal, c-onnect other w-ire. If not, adjust the t-wist g-rip w-ire, until the motor works normally.
Package Include:
1 X Brushless motor controller
Note:
1) It only fit for Motor with sensors.This is a simple edition.
2) Please allow 1-3mm differs due to manual measurement.
3) Due to the different display and different light, the picture may not reflect the actual color of the item.
JLLOM G · PEH 36V/48V 350W Electric Bicycle E-Bike Scooter Brushless Dc Motor Speed Controller
| Weight | 1 lbs |
|---|---|
| Dimensions | 6.3 × 3.15 × 1.97 in |
