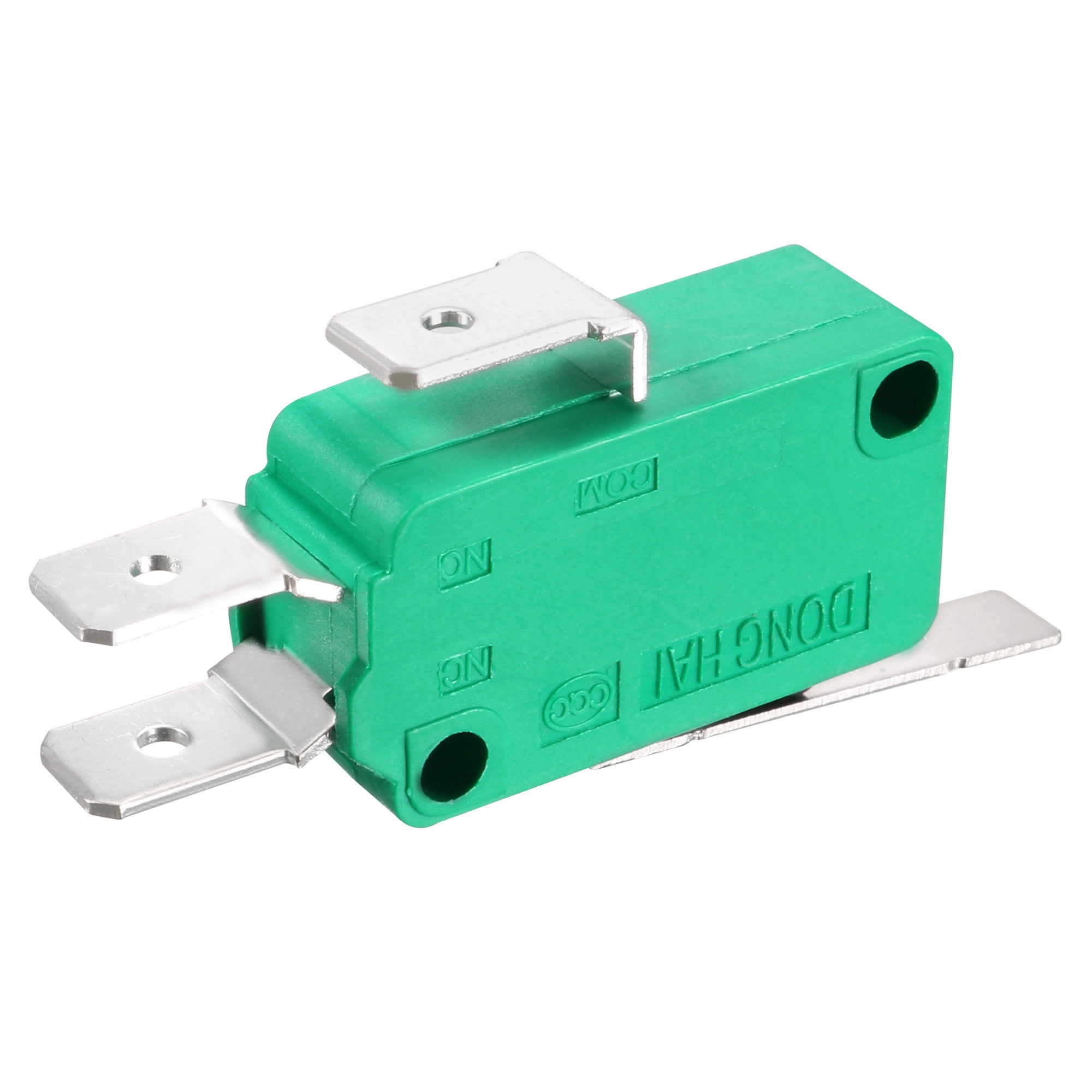

2PCS KW3-OZ 16A 125/250VAC SPDT NO NC Hinge Lever Type Micro Limit Switch

Features
Adopt thermosetting plastic or thermoplastic;
Offers long service and operations life.
Small contact gap, snap sction, high sensitivity and small operatng travel
Widly used in appliance, elctronic equipment, machine, communication equipment, electric, apparatus and instrument, electro motion tool etc…

Specification
Rating Load: 16A 125/250VAC
Operation speed: 0.1mm-1m/s
Contact resistance: 15m Ohm max. (initial)
Insulation resistance: 100m Ohm min. (at DC500V)
Dielectric strength: 1,000 VAC 50/60 Hz for 1minute
Life: 100,000 operations min. full load (Electrical); 10,000,000 operations min.(Mechanical)
Operating temperature: -25~+80°C
Contact Form: SPDT NO+NC
Pin number: 3
Overall size: 51x22x10mm/2.01×0.87×0.39inch(L*W*H)
Total weight: 15g

Package Content
2 x MicroswitchAdopt thermosetting plastic or thermoplastic;
