Waterproof Cctv Stand Holder, Easy To Install Rotating Bracket, For Camera

Waterproof cctv Stand Holder, Easy to Install Rotating Bracket, for Camera
Specification:

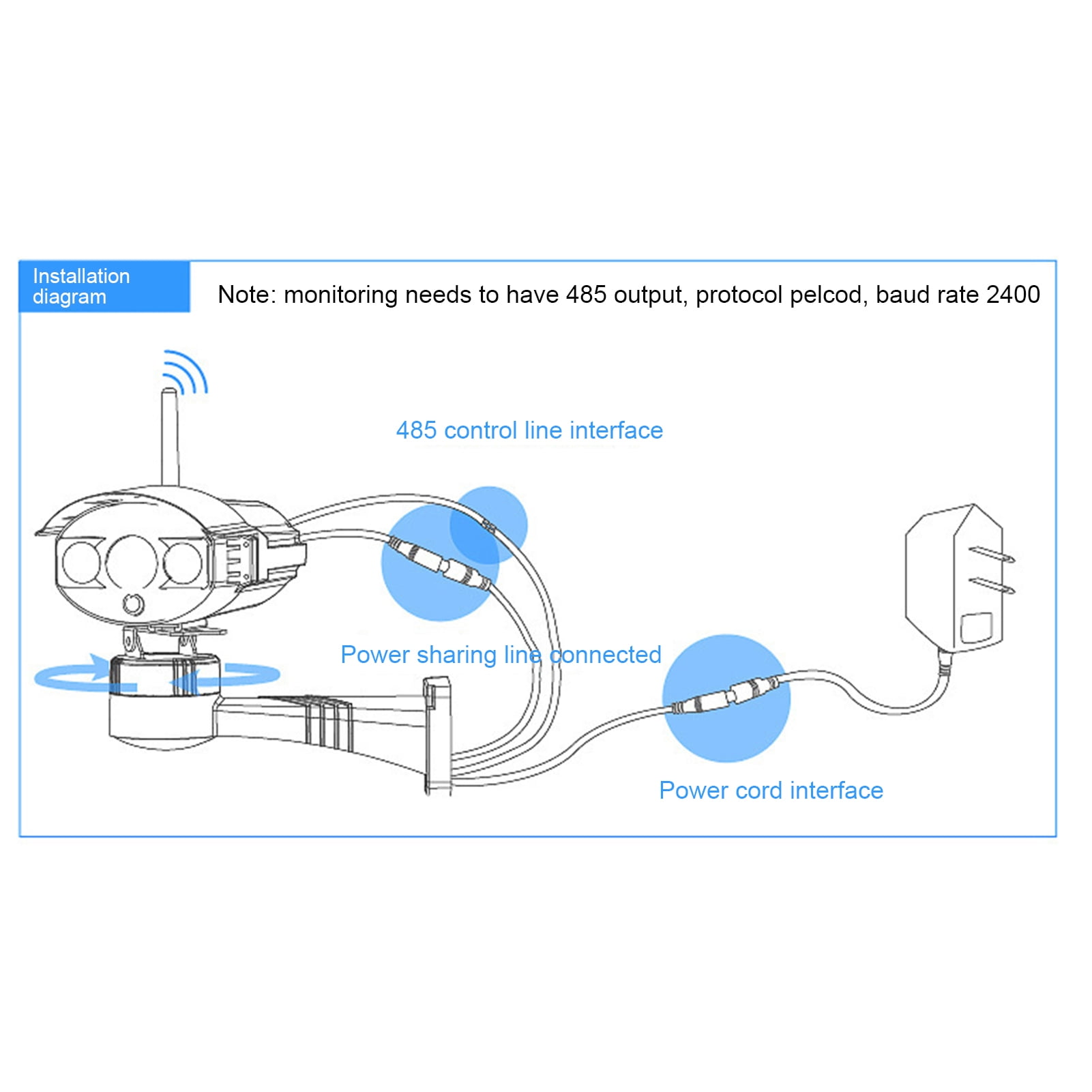

Description: This rotate stand is a good solution for cctv camera to make it to be with rotate function. You can easily upgrade the high-definition camera to up and down and left and right can be rotated without wiring. Especially customized and durable motor. Work stable and have long work life. Features: 255? Horizontal rotate. Left and right as well as up and down stop positions can be freely . The rotating bracket with remote control that you choose has omnibearing rotate. And the RS485 wire control also support. The RS485 wire control (horizontal rotation) only support left and right. With infrared remote control type can support the remote control to achieve rotation, left and right limit scanning, guard bit, preset position, , speed settings, initialization and other functions.(If you choose the stand with remote control) 60? Vertical tilt. Up and down moving, 9 degree per second. Compatible with most available cameras in market. Easy to install. Built-in Intelligent decoder, intelligent preset position, intelligent scan function. Waterproof design, dust-proof and high temperature resistance, industrial level plastic material. Can be easily connected to HD camera’s R-S485 and DC 12V output. Easy to make fixed HD camera to be with rotate function, but no need extra wiring. Ultra-low power consumption, no need to increase power supply, can share a power supply with camera. Support to set the preset bit to change the baud rate. Specifications: Remote control omnibearing: Product load 1500g Support Agreement -D Baud rate 2400 Address range 1-200 Control method RS485 Power supply DC12V 2~1.5A Working temperature -30?C~55?C RS485 Wire control: Horizontal rotation angle 255 degrees Rotational speed horizontal speed 6 degrees, 12 degrees, 20 degrees Vertical rotation angle 60 degrees Vertical rotation speed 9 degrees/second Limit left and right electronic limit, can be set arbitrarily Limit automatic scan Yes, three speed Preposition Yes, 8 presets Preset cruising Yes, 1 preset line, 3 level of rotate speed Watch bit function Yes Manually reset function: Yes Address 128 Soft Address Control method RS485 Interface255? Horizontal rotate. Left and right as well as up and down stop positions can be freely . The rotating bracket with remote control that you choose has omnibearing rotate. And the RS485 wire control also support. The RS485 wire control (horiz
